MACHINERY

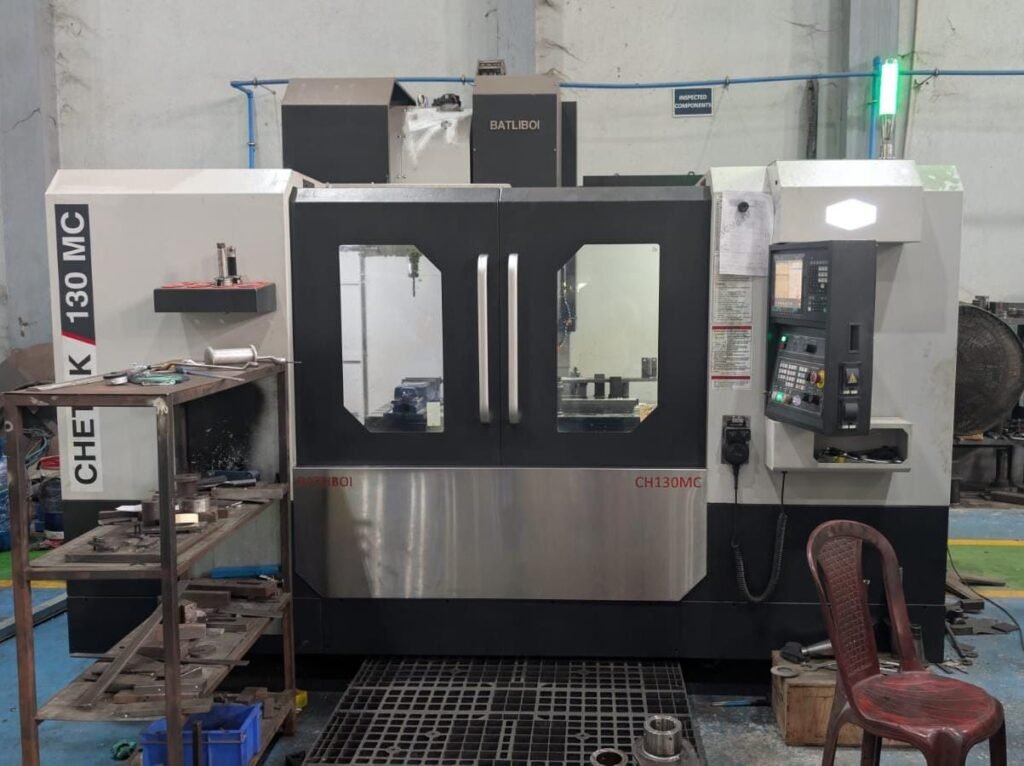

VMC Vertical Machining Center
MAKE : CHETAK
MODEL : 130 MC 40
TABLE SIZE : 1400 × 630 mm
X-AXIS TRAVEL : 1300 mm
Y-AXIS TRAVEL : 630 mm
Z-AXIS TRAVEL : 600 mm
ATC TYPE : Twin Arm Type

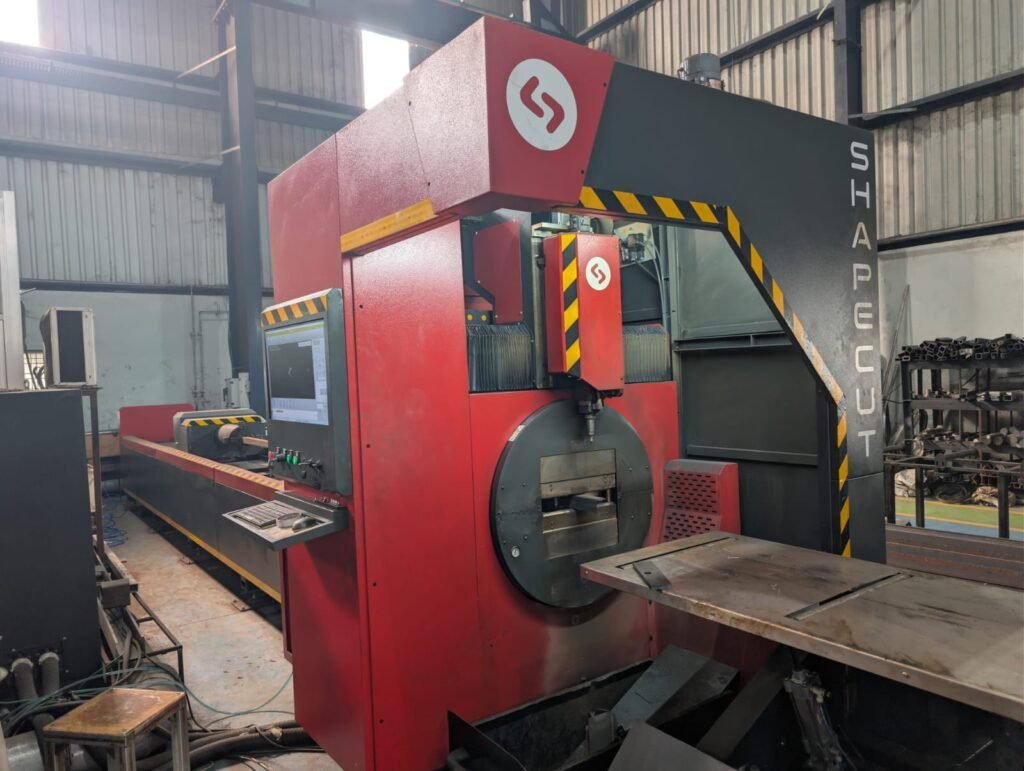

CNC Profile / Beam Cutting Machine
MAKE : SHAPE CUT
MODEL : Industrial CNC Profile Cutting System
CAPACITY : Heavy Structural Steel Processing
TABLE SIZE : Long Beam Feeding Table
CUTTING TYPE : CNC Plasma / Oxy Fuel Cutting
X-AXIS TRAVEL : Automatic Longitudinal Beam Movement
Y-AXIS TRAVEL : Cross Cutting Movement
Z-AXIS TRAVEL : Torch Height Control
TYPE : CNC Beam / Profile Cutting Machine

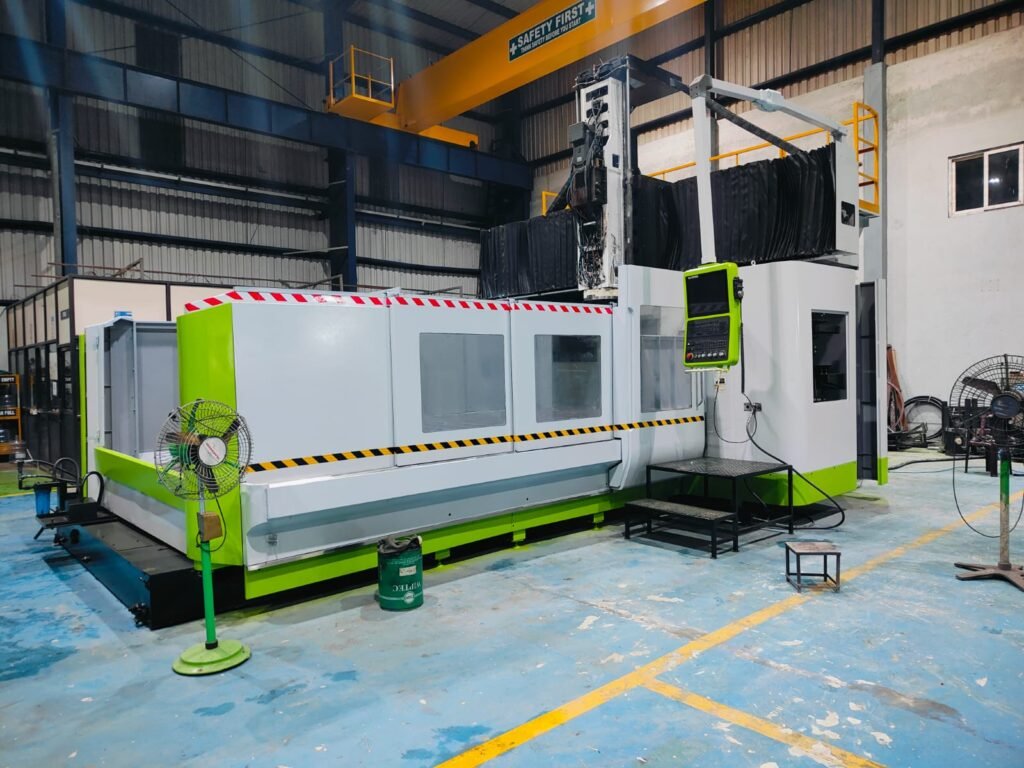

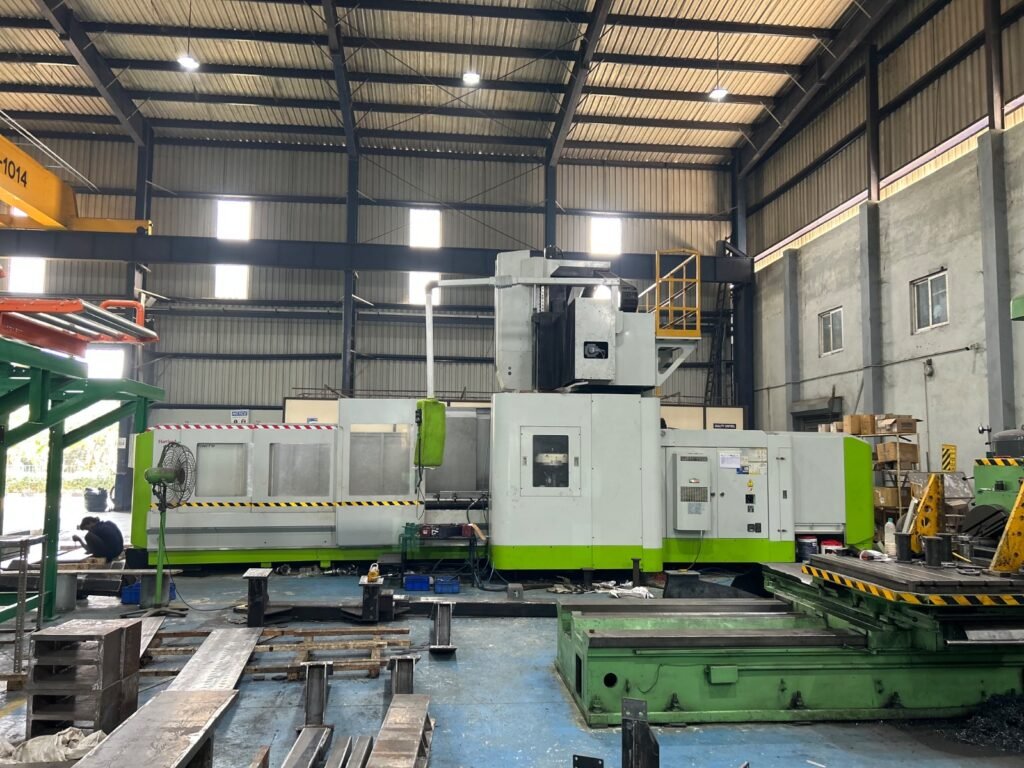

VMC Double Column 5axis Machine
MAKE : HARTFORD (TAIWAN)
MODEL : HAS-427-EAY
CAPACITY : 30 TONS
TABLE SIZE : 4000 × 2000 mm
X-AXIS TRAVEL : 4000 mm
Y-AXIS TRAVEL : 2000 mm
Z-AXIS TRAVEL : 1000 mm
TYPE : CNC UNIVERSAL HEAD
CNC Fiber Laser Cutting Machine
Make: China
Capacity: Maximum of 16mm
Model: FG 3015 PLUS
Size: 3000mm x 1500mm
Operations: Slot, Holes, Marking, Notching, Cutout, Different Profile Shapes, and all other laser operations
CNC Laser Cutting Machine
Make: Japan
Model: FOM23015NT Laser
Capacity: Maximum of 10mm
Size: 3000mm x 1500mm x 12mm
Operations: Slotting, hole drilling, marking, notching, cutouts, shaping different profiles, and all other laser-related operations.
CNC Profile Cutting Machine
Make: Germany
Model: Messer
Capacity: Maximum of 100mm
Size: 8 meters x 4 meters
Operations: Slotting, hole drilling, marking, notching, cutouts, shaping different profiles, and all other profile-related operations.
CNC Turret Punch Press
Make: Amada Japan
Model Series: Amada Aries 255
Capacity: Maximum of 3mm
Operations: Nibbling, Louvering, Slot, Holes, Marking, Notching, Cutout, and all other turret operations
CNC Turning Machine
Model: Jobber XL
Chuck Diameter: 200mm
Maximum Job Holding Capacity: 180mm
Holding Outer Diameter: 200mm
Indexing Tool: 8 station
Maximum Length: 250mm
Horizontal Boring Machine
Make: HMT Pegard AZ11
Capacity: 6 tons
Motor: 40 HP
Table Size: 1200mm x 1200mm
Spindle Diameter: 110mm
Chuck Diameter: 750mm
CNC Hydraulic Bending Machine
Make: Dener Turkey
Model: Dener Smart XL
Capacity: Maximum of 8mm, 4.2 meters
Operation: Bending
Hydraulic Shearing Machine
Model Series: HGS 3100X6
Capacity: Maximum of 6mm
Size: 3 meters in length
Manual Bending Machine
Make: Taiwan
Capacity: Maximum of 5mm thickness, 3.2 meters length
Operation: Bending
Bandsaw Cutting Machine
Make: Pathak
Capacity: Maximum of 6mm
Operations: Used to cut various sections including angles, channels, I-beams, flats, rods, and pipe
Vertical Milling Machine
Size: 2 feet
Operations: Capable of performing slotting, grooving, and various other operations
Lathe Machine
Sizes: Available in 8 feet, 6 feet, and 4 feet configurations
Operations: Capable of performing turning, facing, threading, chamfering, drilling, boring, and other related operations.
